Request a QuoteVariable Frequency Drive Panels

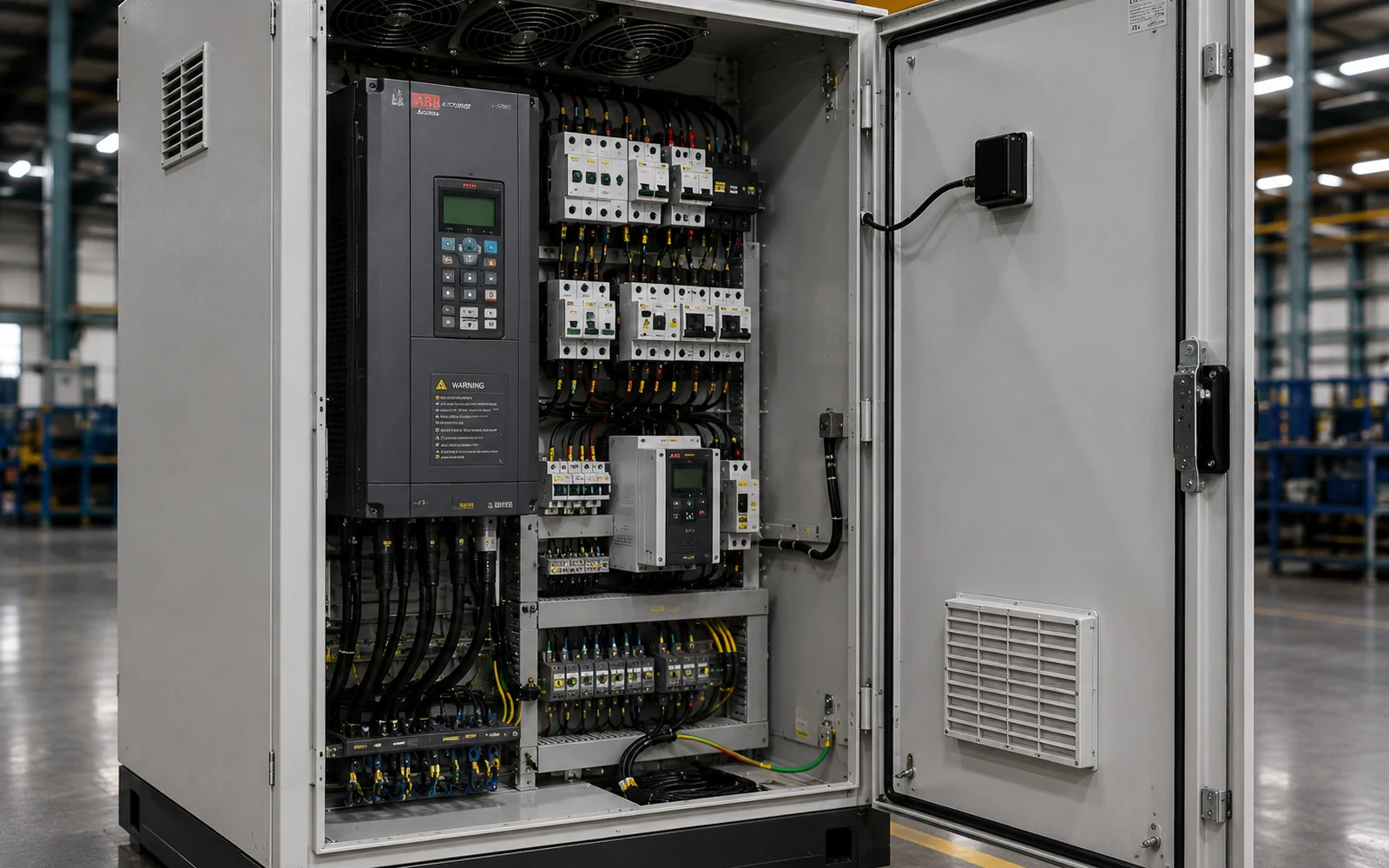

VFD Control Panels for Industrial Motor Speed Control
Organize your VFD panel inquiry around the driven equipment, existing motor, speed-control objective, control method and installation conditions.
Fastest Inquiry Path

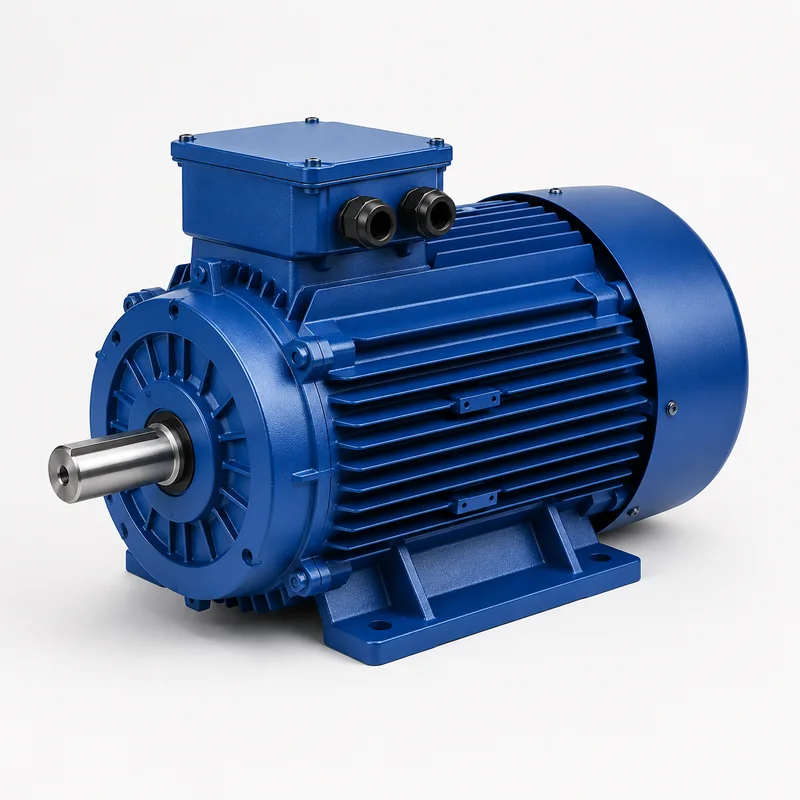

Already Have the Motor?
Upload the existing motor nameplate or datasheet. You do not need to manually enter information that is already shown on the motor documentation.
Upload Existing Motor Nameplate

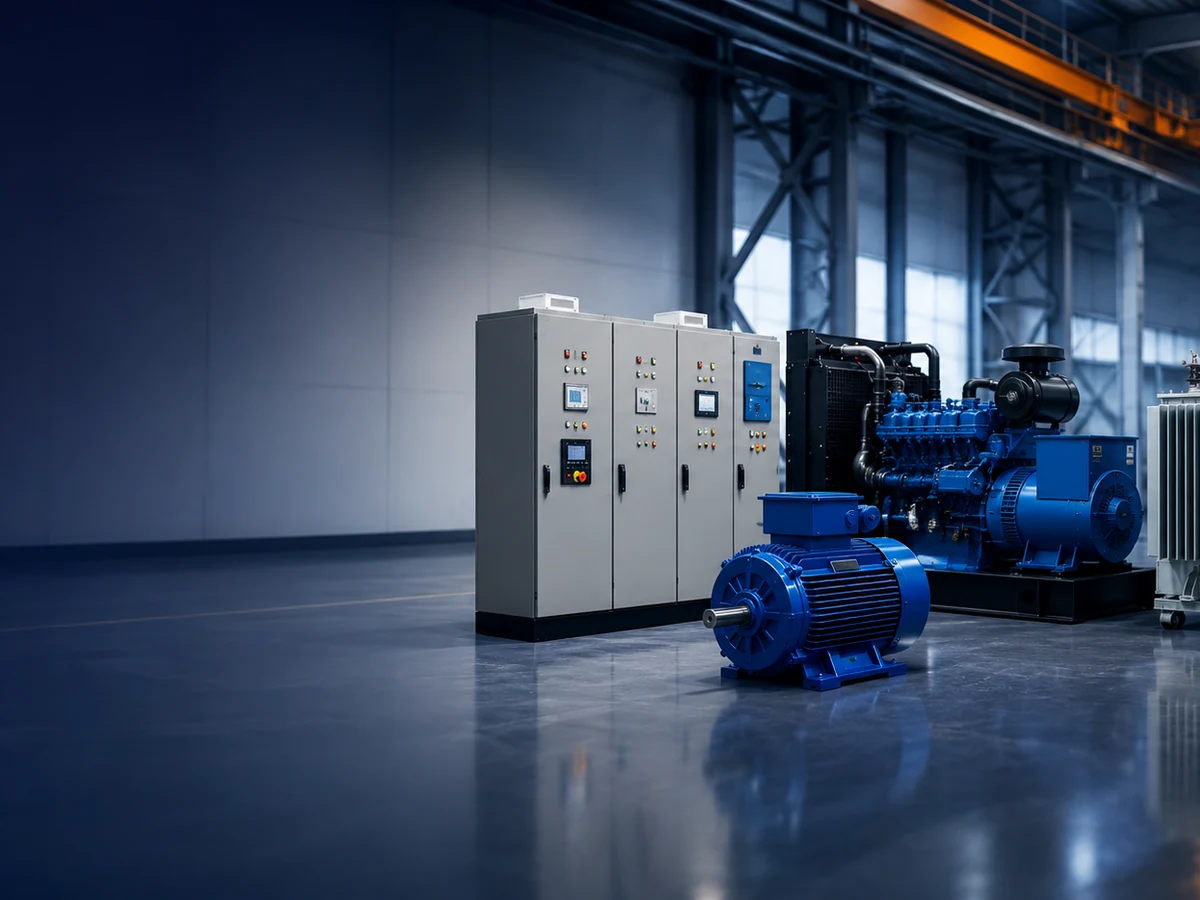

Driven Equipment
What Equipment Are You Controlling?
The driven machine and process objective are the starting point for describing a VFD control requirement.
Fans & Blowers
Provide the airflow-control objective, motor data and required operating method.
Conveyors
Share the conveyor duty, required speed changes, sequence and load information.
Compressors
Explain the process demand, control sequence and available compressor-motor information.
Mixers
Identify the material process, operating stages and required speed-control objective.
Process Machinery
Describe the machine cycle, driven load, operator controls and system interfaces.
Operating Objective
Define the Speed-Control Requirement
Describe how the equipment should operate. A VFD configuration should not be selected from motor power alone.
- 01Why Variable Speed Is Required
Describe the process or operating reason for changing motor speed.
- 02Adjustable Operating Speed
State whether speed is adjusted by an operator, a process command or an operating sequence.
- 03Process Regulation
Explain what process condition or equipment output needs to be regulated.
- 04Operating Sequence
Provide known start, stop, acceleration, deceleration or sequencing expectations without assuming preset values.
- 05Known Speed / Frequency Range
Include the expected operating range when it is already specified by the project or equipment provider.
Motor Inputs
Motor & Electrical Information
Provide the values shown on the motor nameplate or datasheet when available. Unknown fields may remain blank during the first inquiry.
Rated powerMotor voltageMotor frequencyRated current if knownSpeed / poles if knownExisting motor nameplate or datasheet
Control Journey
How Should the VFD Be Controlled?
Use this simplified flow to describe where commands originate and how the panel should interact with the motor and driven equipment.
01Driven Equipment / MotorApplication and motor information
→02VFD PanelSpeed-control and panel requirement
→03Local / Remote / PLC ControlCommands, references and signals
Control Inputs
Control & Integration Requirements
Include only the controls, signals and interfaces required by the equipment or project specification.
- Start / stop commands
- Speed reference
- Local / remote operation
- PLC requirement
- HMI requirement
- External signals
- Feedback signals
- Communication if specified
- Interlocks if specified
Project Conditions

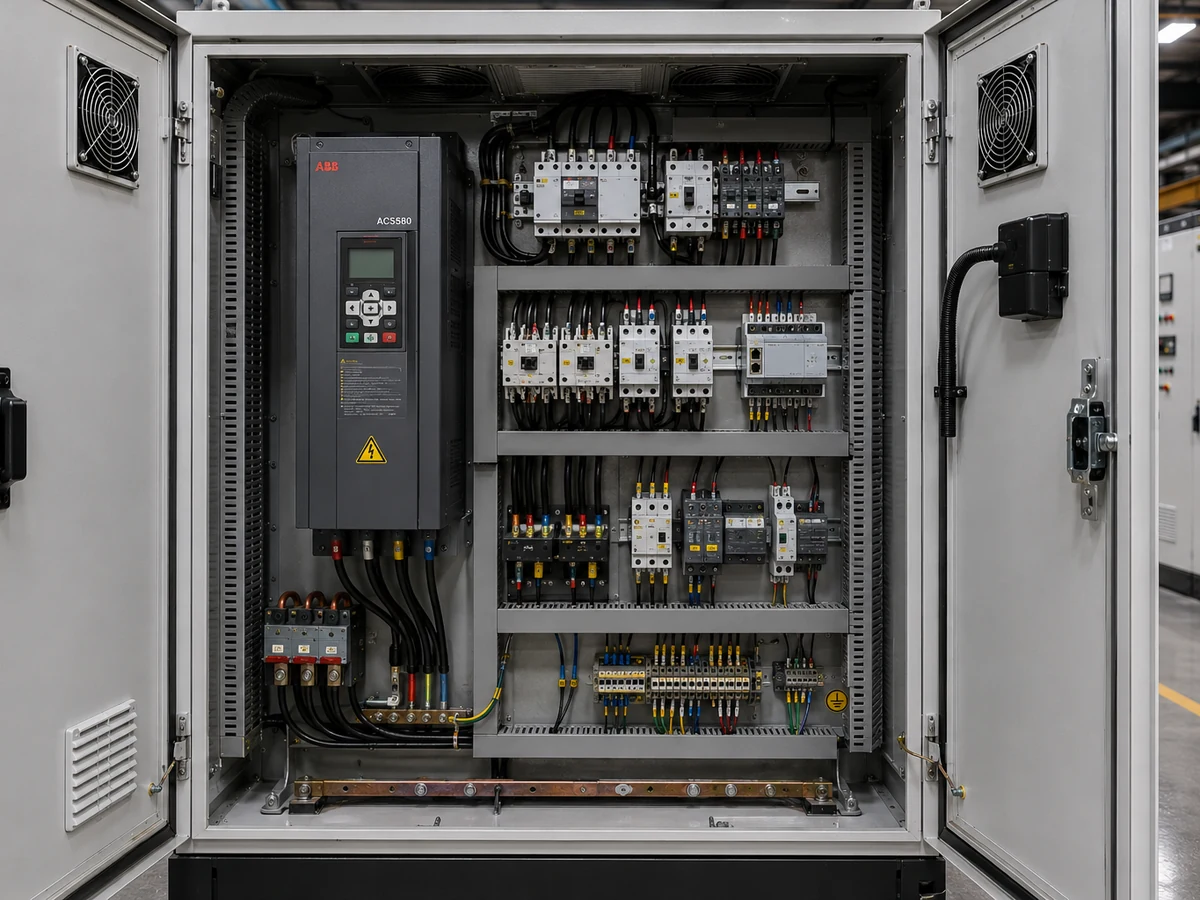

Panel & Installation Considerations
Site and panel requirements should be stated as project inputs. Final enclosure, ventilation and configuration require technical review.
Panel & Installation
- Indoor / outdoor
- Enclosure requirement
- Ventilation / cooling
- Cable entry
Site & Project Conditions
- Site environment
- Ambient temperature / altitude if relevant
- Bypass requirement if specified
- Applicable project requirement if specified
Existing Systems

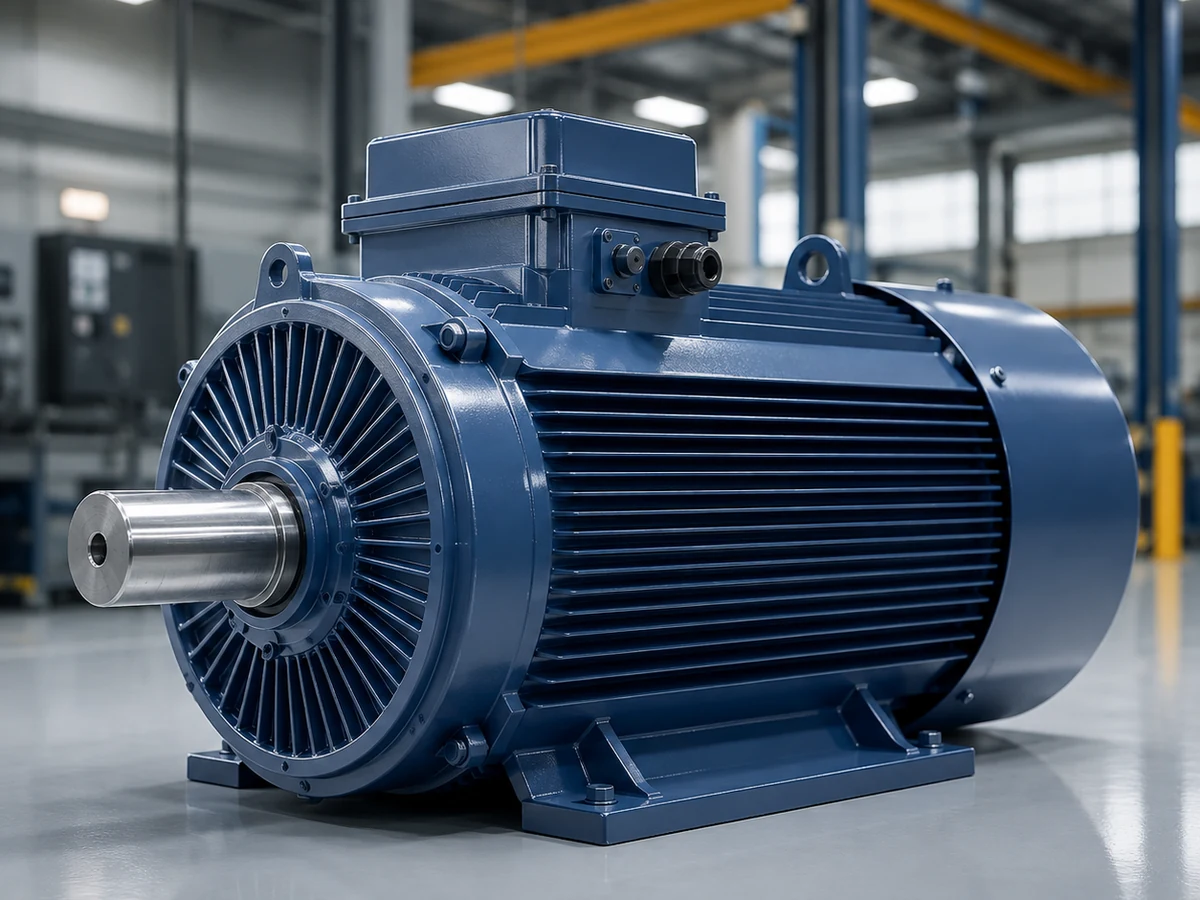

Existing Motor / Replacement / Retrofit
For an existing installation, send the available equipment data, panel information and space constraints so compatibility and configuration can be reviewed.
- Motor nameplate
- Existing VFD nameplate if available
- Existing panel photos
- Electrical drawings
- Motor datasheet
- Control requirements
- Installation-space information
Final compatibility and configuration require review. This page does not promise a drop-in replacement.
Quality Verification
Verification Before Shipment
Review points can be aligned with the confirmed order documents and agreed panel configuration before shipment.
Confirmed configuration reviewComponent consistency checkWiring and terminal identification reviewNameplate and label reviewAppearance reviewDocument consistencyPacking mark verification
Continue Your Review
Related Products & Technical Resources
Buyer Questions
VFD Control Panel FAQ
Practical starting points for preparing a VFD panel inquiry.
What information is useful for a VFD control panel quotation?
The driven equipment, motor power, voltage, frequency, available nameplate data, speed-control objective, control mode, installation conditions, quantity and destination country are useful starting points.
Can I request a quotation from an existing motor nameplate?
Yes. A clear motor nameplate or datasheet can provide much of the starting information. Please also describe the driven equipment, required control method and project conditions.
Do I need to know the exact operating speed or frequency range?
No. Provide the range when it is already known. Otherwise describe why variable speed is required and how the equipment should operate so the requirement can be reviewed.
Can local, remote, PLC or HMI control requirements be included?
These requirements can be included in the inquiry. Submit the available control description, signals, interlocks, drawings or project specification for quotation review.
Should I specify a bypass requirement?
Include a bypass requirement only when it is part of the project specification or operating plan. The arrangement and availability require technical review.
Can an existing VFD panel be replaced directly?
Replacement inquiries can be reviewed from the motor and VFD nameplates, panel photos, electrical drawings, control requirements and installation-space information. Final compatibility and configuration must be confirmed before quotation or supply.
VFD Request for Quotation
Send Your VFD Requirements
Already have the motor? Upload its nameplate, datasheet or project drawing. Most technical fields are optional and can be clarified during quotation review.
